Pulling Unit With Chain
Pipe
Genie units draw a flexible breaking head through existing
pipe, utilizing up to 240 tons of hydraulic pulling
power!
The
existing pipe is broken apart. New pipe follows the
cone automatically replacing the line.
Pipe
Genie units will install any type of pipe up to 30 inch
diameter with minimal disruption to the landscape.t

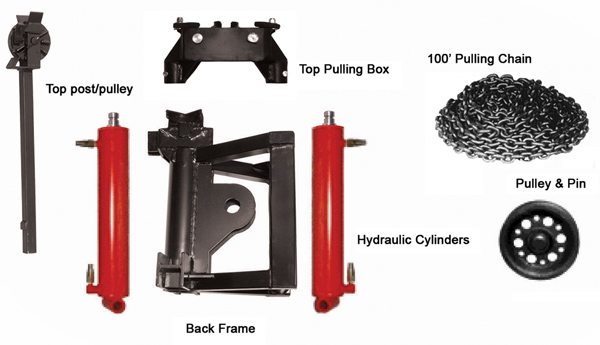

Hydraulic
Pulling Unit - Equipment Specifications
-
100
feet of 3/4 inch sewaged cable
-
Breaking
cones and adapter for 4 inch polyethylene
-
Hydrolic
hose and actuator
-
1
inch push pipe and 1/4 inch cable
-
Optional
9 horse Honda power pack available
-
Optional
kits available for: sewer, water, gas and cable size
Use
3/8, 7/16, 1/2, 9/16, 3/4 inch cable, or 1/2, 5/8, 3/4,
or 1 inch certified chain by simply exchanging the jaws.
| |
1
Minute to Assemble |
|
Pull
through 45 degree angle |
| |
2
Hours to Learn Operation |
|
Positive
latch on chain - will not slip |
| |
Install
any type of pipe |
|
Pull
speed up to 5' per minute |
| |
33%
more pulling power |
|
No
maintenance |
| |
Flow
through cones for lives jobs |
|
Very
Compact & Easy to Transport |
| |
Hollow
cones for easy removal |
|
Extremely
Low Operating Costs |
| |
Taperd
cones exerting added pressure |
|
Built-to-Last
Construction |
| |
Install
sewers in small working area |
|
Rough
& Tough Performance |
| |
Safe
Near Underground Utilities |
|
Financing
and Leasing available |
Chain Pulley Catalogue
Hydraulic
Pulling Unit using Cable

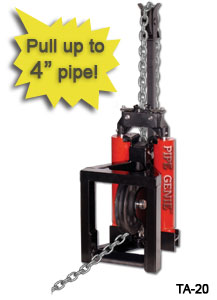

The
general-duty TA-20
is designed to efficiently handle every-day jobs that
require pulling standard 4" pipe through soil that
is not highly compacted.
The
TA-20 comes standard with a 9 HP hydraulic power supply,
and two chain carts containing 1/2" pulling chain
and 3/8" retaining chain.

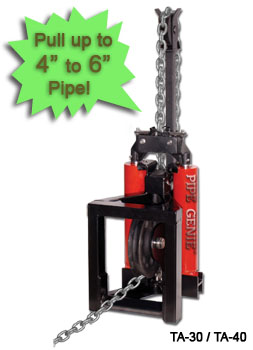

TA-30
Unit using Cable The
heavy-duty TA-30
is your choice for tough jobs and is capable of pulling
up to 6" pipe through any soil conditions.
The
TA-30 comes standard with a 9 HP hydraulic power supply,
and two chain carts containing 100' 5/8" chain
to pull high-density polyethylene pipe only.
The
TA-40
pipe pulling unit easily handles a wide variety of general
jobs and is capable of pulling 4" to 6" pipe
in any soil conditions.
The
TA-40 comes standard with a 9 HP hydraulic power supply
and three chain carts containing 5/8" chain.
The

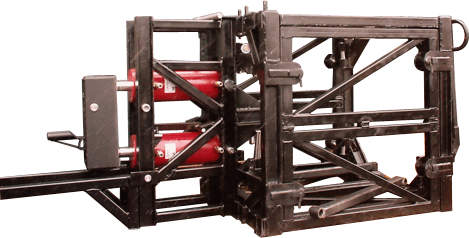

PowerCage - Stepped Power
PULL
20" up to 30" Pipe with ONE Machine!
All
this power in a small 40" x 40" x 40" pulling
cage. The PowerCageTM is a serious tool for
busy trenchless professionals dealing with a wide variety
of jobs and working conditions. Despite the awesome power
capability, the PowerCageTM maintains the small, highly portable
attributes of all Trenchless Canada systems.
Stepping
up the power is as simple as adding pulling cylinders as needed.
The included adapter supplies simultaneous power to one, two
or three cylinders from only one power supply. The open architecture
of the PowerCageTM allows in-pit conversions
as additional pulling cylinders are required.

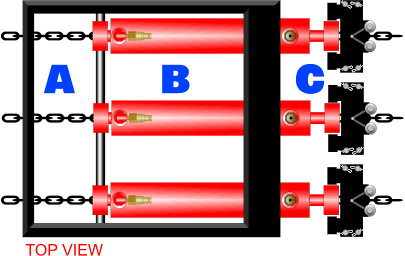

A.
Open architecture provides working room to retrieve emerging
cones.
B. PowerCageTM frame area ready to accept
additional cylinders.
C. Pulling blocks draw chain as all cylinders
operate synchronously off a single power pack.

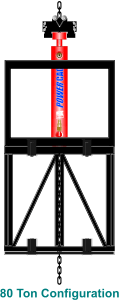

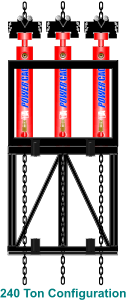

Three
Configurations in 80 Ton Increments

|
